※驅動器集成過壓過流保護功能
※輸入信號光隔離
※雙極恒流斬波方式
※直流供電20-50VDC (建議24-45VDC工作)
※最大驅動電流4.2A
※低速零震動,且噪音及小
※高細分:2,4,8,16,32,64,128,5,10,20,25,40
50,100,125
※抗干擾能力強,在電網惡劣的環境里
可以實現高精度定位
※高可靠性:功率器件留有足夠裕量,
出廠經過嚴格測試
冷卻方式 | 自然冷卻或強制風冷。 |
場合 | 不能放在其他發熱的設備旁,要避免粉塵、油污、腐蝕性氣體、濕度 太大及強震場所,禁止有可燃氣體和導電灰塵。 |
濕度 | 40-90%RH |
震動 | 10-55Hz/0.15mm |
保存溫度 | -20-65℃ |
重量 | 0.25KG |

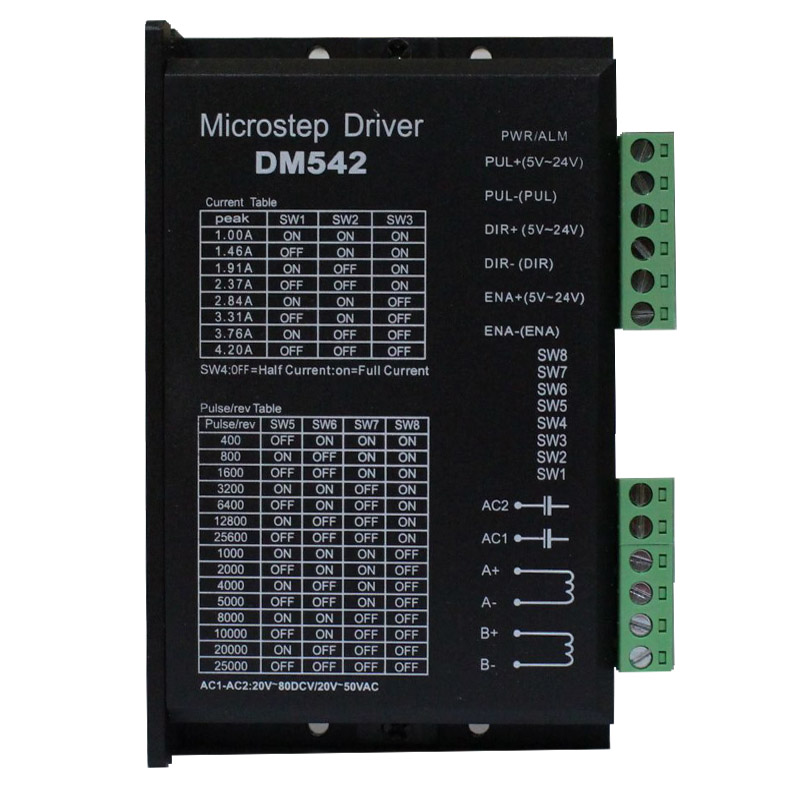

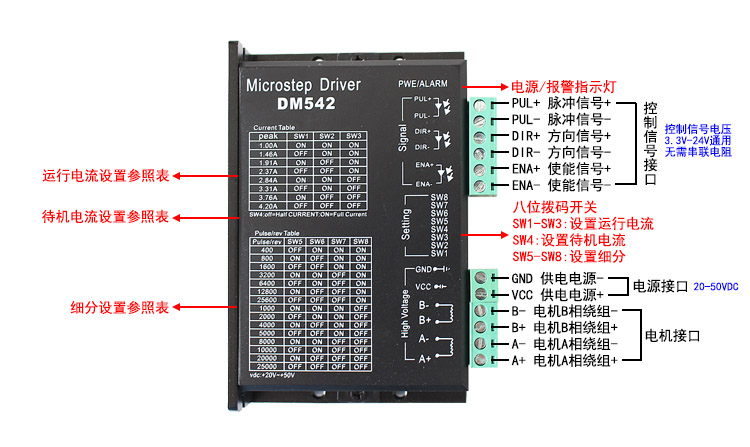

運行電流 | SW1 | SW2 | SW3 |
1.00A | ON | ON | ON |
1.46A | OFF | ON | ON |
1.91A | ON | OFF | ON |
2.37A | OFF | OFF | ON |
2.84A | ON | ON | OFF |
3.31A | OFF | ON | OFF |
3.76A | ON | OFF | OFF |
4.20A | OFF | OFF | OFF |
脈沖/圈 | SW5 | SW6 | SW7 | SW8 |
400 | OFF | ON | ON | ON |
800 | ON | OFF | ON | ON |
1600 | OFF | OFF | ON | ON |
3200 | ON | ON | OFF | ON |
6400 | OFF | ON | OFF | ON |
12800 | ON | OFF | OFF | ON |
25600 | OFF | OFF | OFF | ON |
1000 | ON | ON | ON | OFF |
2000 | OFF | ON | ON | OFF |
4000 | ON | OFF | ON | OFF |
5000 | OFF | OFF | ON | OFF |
8000 | ON | ON | OFF | OFF |
10000 | OFF | ON | OFF | OFF |
20000 | ON | OFF | OFF | OFF |
25000 | OFF | OFF | OFF | OFF |
